Valor VL100 Pro

Categories: , ,

  • 32-bit secure microprocessor running a powerful Linux-based operating system
  • 3.5” Color TFT LCD with capacitive touch screen, Resolution of 320 x 480 pixels
  • Memory: 256MB Flash, 128MB RAM
  • Wi-Fi, Ethernet, RS232, USB
  • Audio: Buzzer
  • High speed thermal printer with a speed of 100mm/sec
  • Weight: 350g
Tags
Description

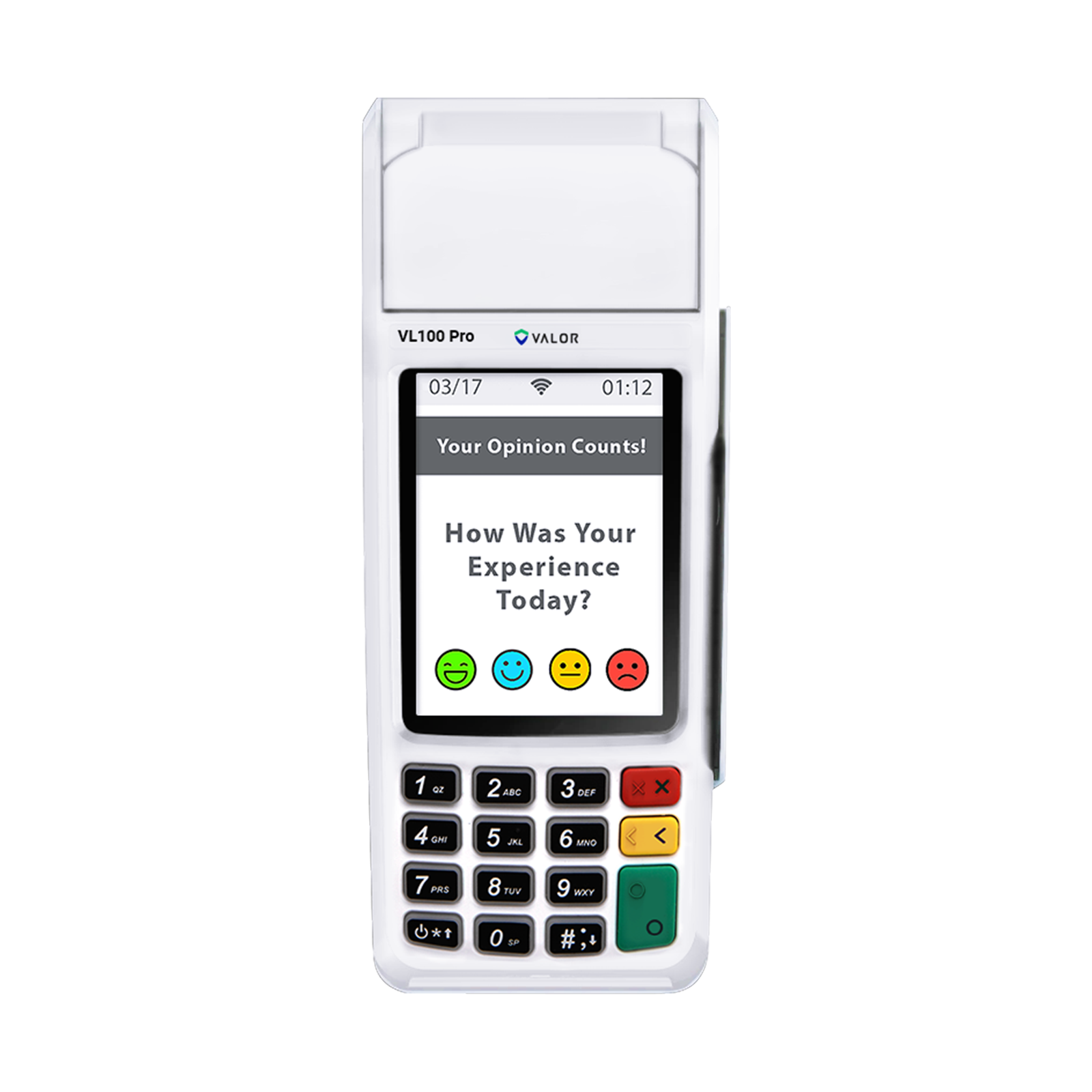

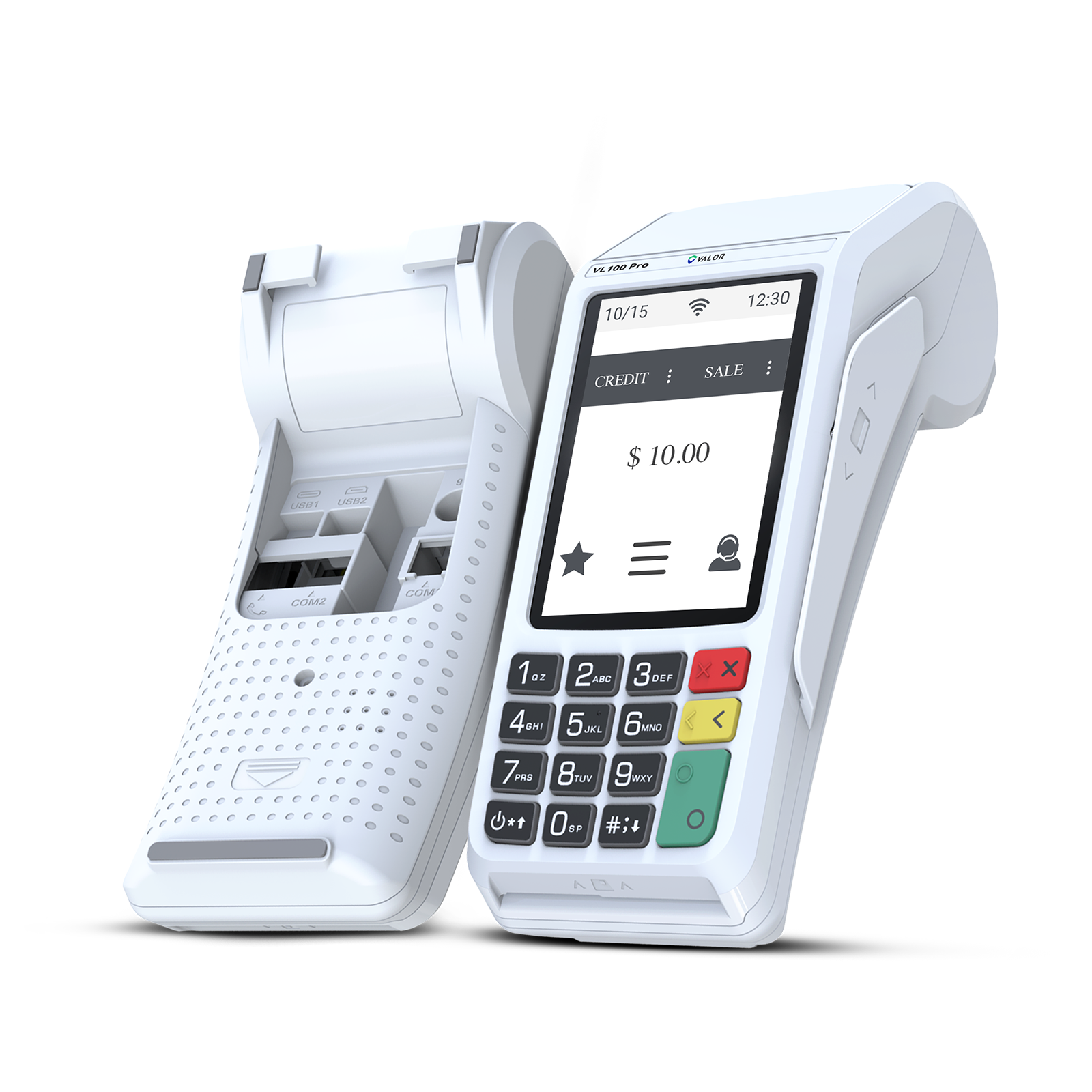

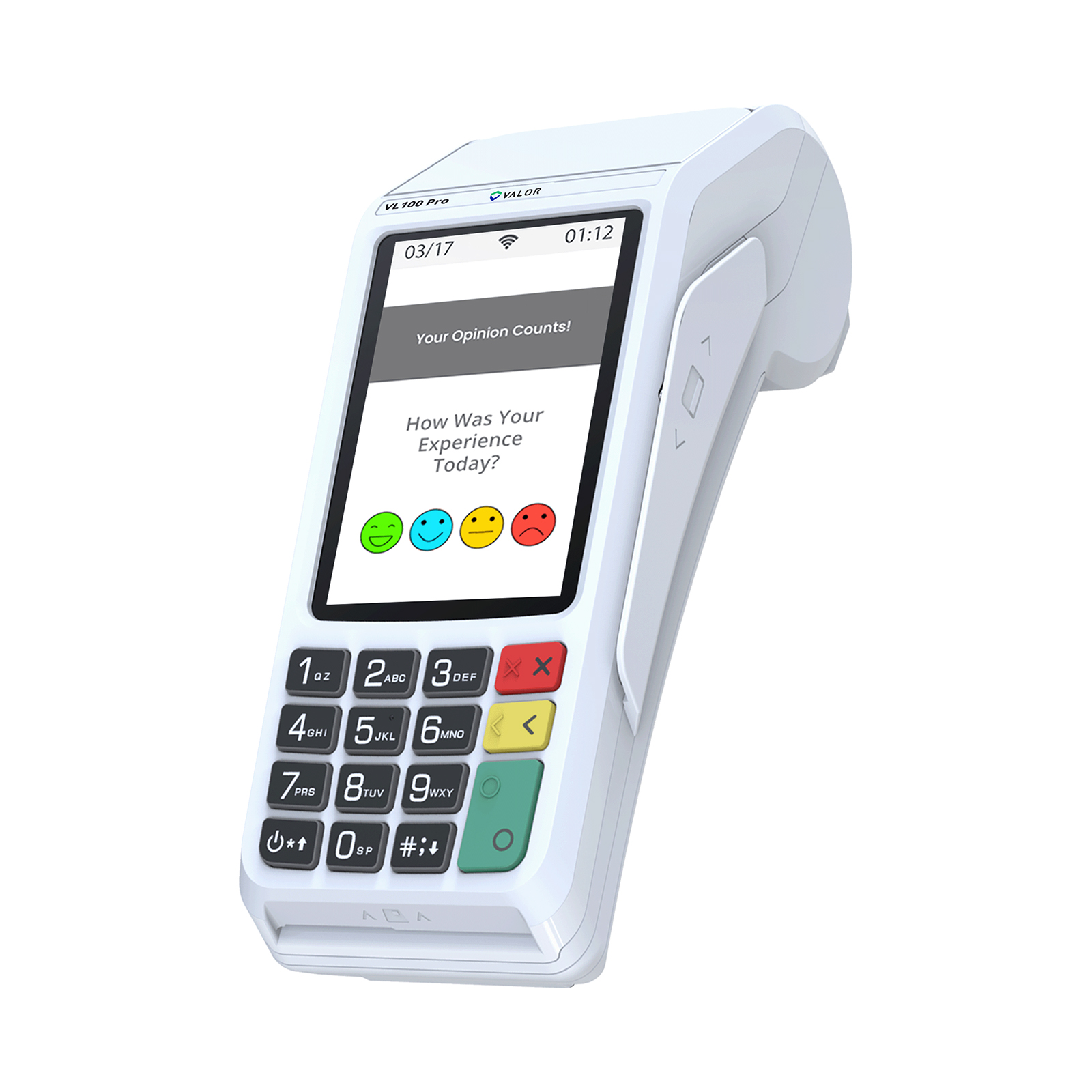

The VL100 Pro POS Terminal by Valor PayTech offers an affordable, secure, and user-friendly payment solution for various business needs. Equipped with a 3.5” touchscreen, PCI PTS 6.x certification, and advanced connectivity options including Wi-Fi, 4G, and Bluetooth, this terminal is perfect for quick and secure payments with tap, dip, and swipe options.

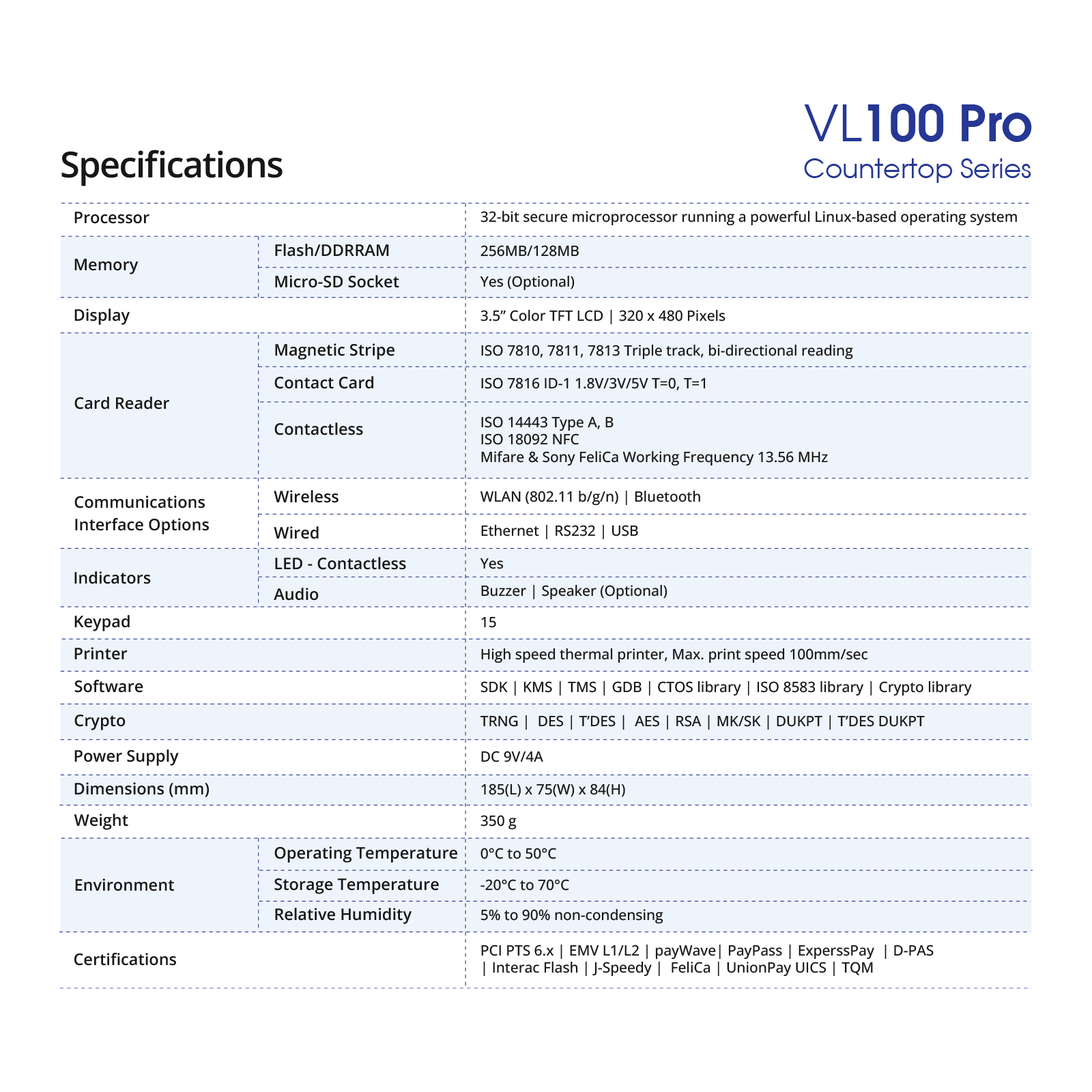

Processor 32-bit secure microprocessor running a powerful Linux-based operating system
Memory Flash/DDR RAM: 256MB/128MB
Micro-SD Socket: Yes (Optional)
Display 3.5” Color TFT LCD | 320 x 480 Pixels
Card Reader Magnetic Stripe: ISO 7810, 7811, 7813 Triple track, bi-directional reading
Contact Card: ISO 7816 ID-1 1.8V/3V/5V T=0, T=1
Contactless: ISO 14443 Type A, B; ISO 18092 NFC; Mifare & Sony Felica Working Frequency 13.56 MHz
Communications Interface Options Wireless: WLAN (802.11 b/g/n) | Bluetooth
Wired: Ethernet | RS232 | USB
Indicators LED – Contactless: Yes
Audio: Buzzer | Speaker (Optional)
Keypad 15
Printer High-speed thermal printer, Max. print speed 100mm/sec
Software SDK | KMS | TMS | GDB | CTOS library | ISO 8583 library | Crypto library
Crypto TRNG | DES | T’DES | AES | RSA | MK/SK | DUKPT | T’DES DUKPT
Power Supply DC 9V/4A
Dimensions (mm) 185(L) x 75(W) x 84(H)
Weight 350 g
Environment Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: 5% to 90% non-condensing
Certifications PCI PTS 6.x | EMV L1/L2 | payWave | PayPass | ExpressPay | D-PAS | Interac Flash | J-Speedy | Felica | UnionPay UICS | TQM
