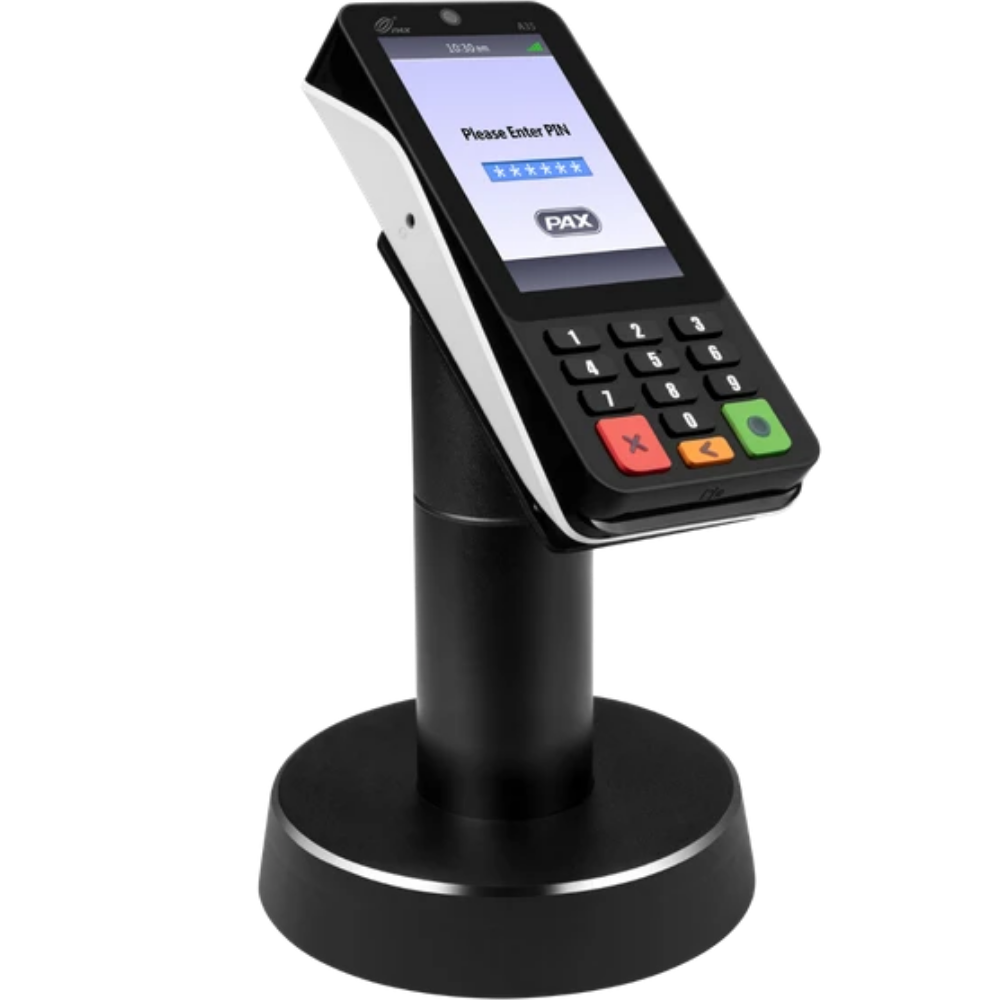

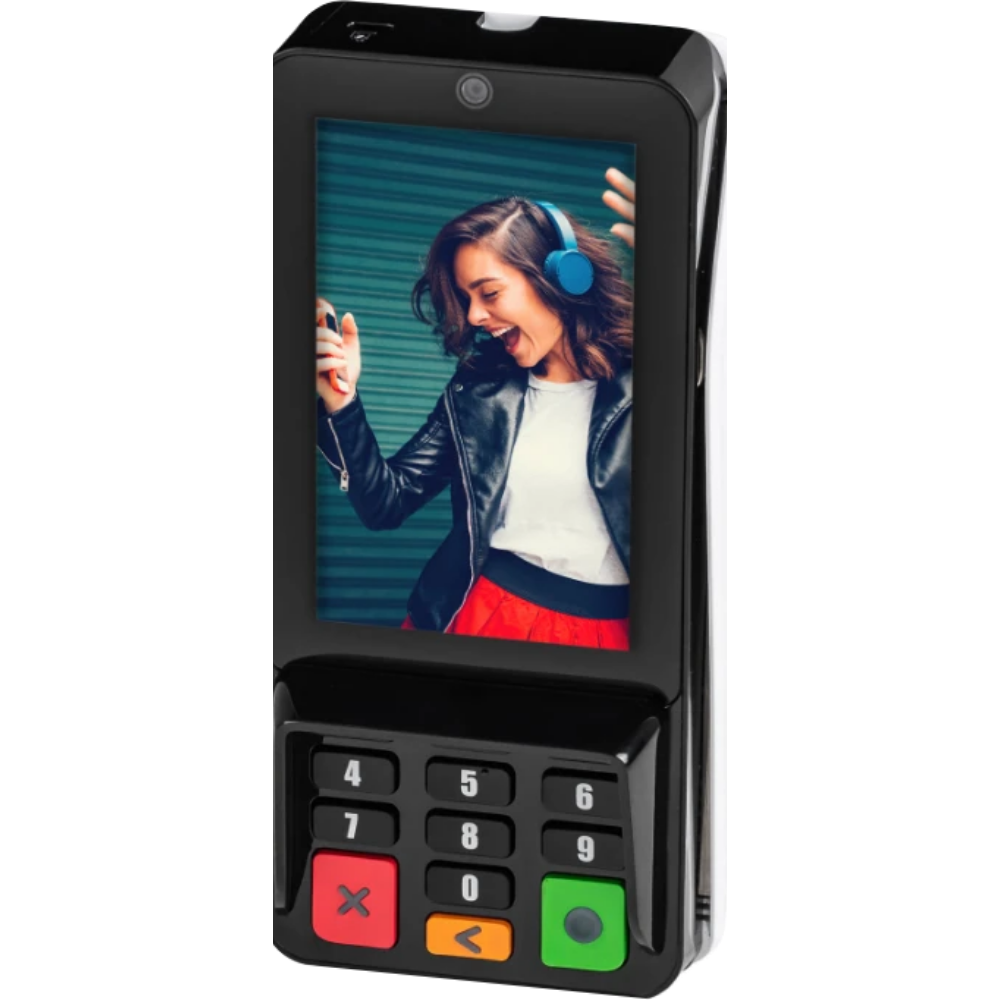

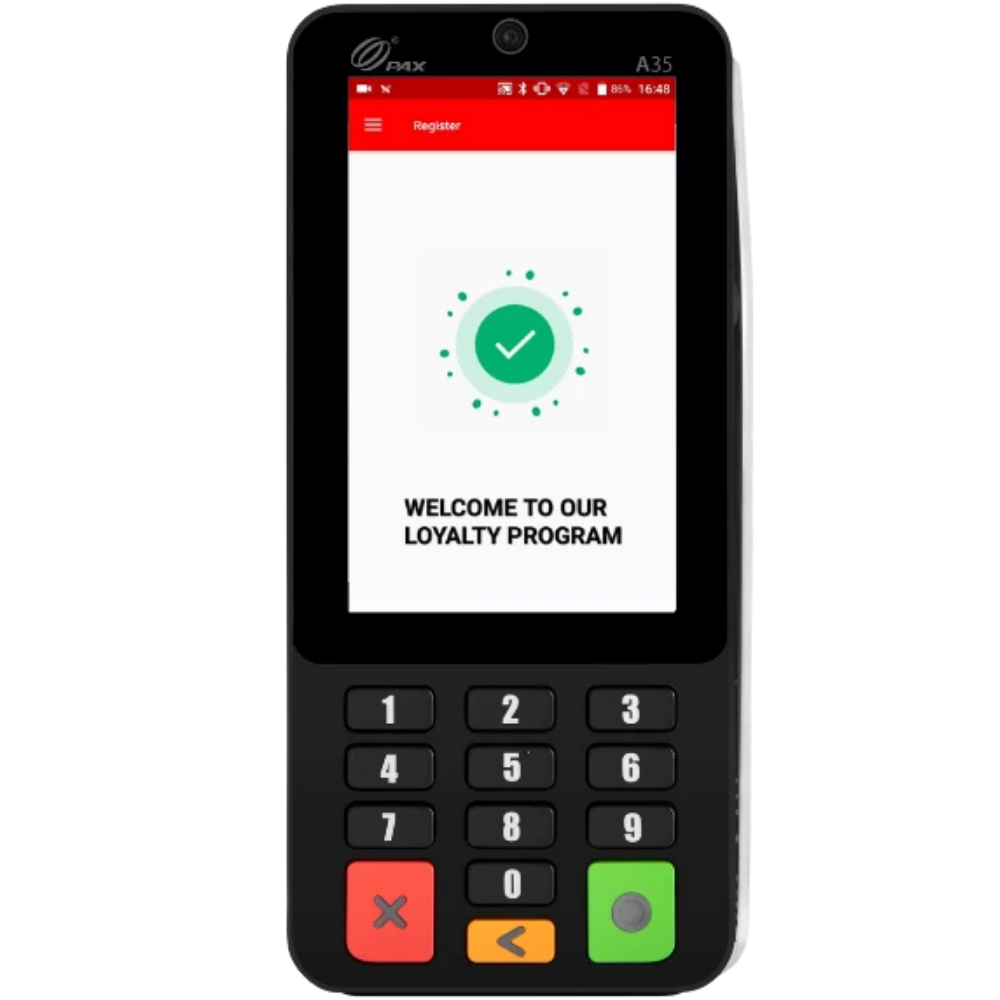

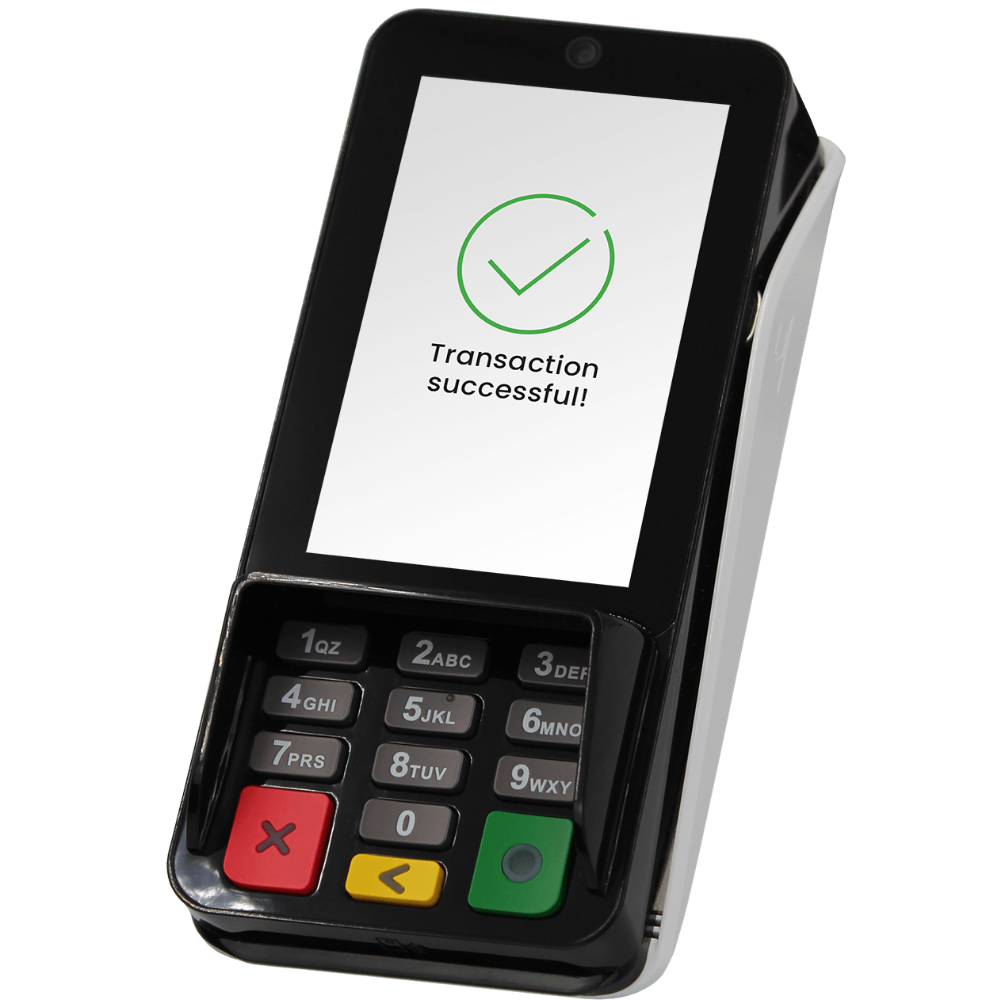

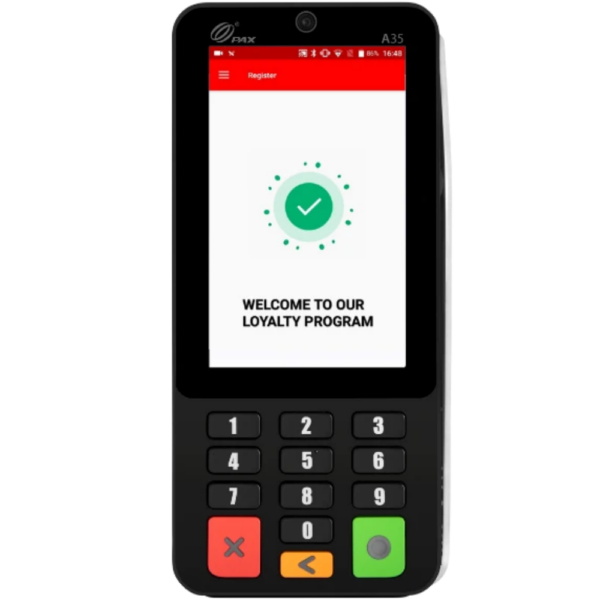

Pax A35

Categories: ,

  • “Android™
  • Adheres to the latest PCI PTS 6.x and SRED security standards
  • Accepts contactless, EMV, and magnetic stripe payments
  • Features a vivid, four-inch capacitive touchscreen
  • Innovative cable design that incorporates high-speed Ethernet, RS232, and USB, as well as optional Power-Over-Ethernet”
Tags
Description
The A35 is a powerful and user-friendly retail device. It can be used for payments or as a payment input for another device. It easily connects with any POS system, providing customized payments and additional services at the point of sale. The A35 meets the latest security requirements in the payment industry. It has a touchscreen display and supports Ethernet, Power-Over-Ethernet, or USB power. This versatile device accepts traditional card, contactless, and QR code payments. *Only available on TSYS.
Operating System PAXBiz@ Powered by Android TM 10.0
Processor Application CPU: ARM Cortex A53
Security CPU: ARM
Memory 8GB Flash + 1GB DDR, Optional 128GB MicroSD
Card Readers Chip & PIN | NFC Contactless | Magnetic Stripe
Cameras 0.3MP FixFocus Front-Facing Camera
Optional:0.5MP FixFocus Front-Facing Camera
Displays 4″ WVGA 480 * 800 Pixels, Capacitive Touch Screen
Comms Configurations RS232 | Ethernet | USB 2.0
Wi-fi@ (2.4GHz & 5GHz) + Optional Bluetooth@ (4.2/5.0)
Adapter Input: 100-240VAC, 50Hz/60Hz | Output: 5.0V DC, 1.0A
SIM / SAM 2PSAM
Keys / Buttons 13 keys:0-9 | Enter | Clear | Cancel, Back-Lighting (Optional)
Audio 1 Speaker | 1 Audio Jack
Ports Multi-Functional Port | 1 Kensington | MicroSD (Optional)
Physical 163.69 * 76.90 * 30.10mm, 260g
Environmental 00C ~ 500C (320F ~ 1220F) Operating Temperature
-200C ~ 700C (-40F ~ 1580F) Storage Temperature
5% ~ 93% Relative Humidity, Non-Condensing
Accessory Options Communication Cables | Gigabit Ethernet |
Power Over Ethernet (via PoE splitter) | Power Over USB | Pole Stand
Certifications PCI PTS 6.x, SRED | EMV L1 & L2 | EMV Contactless L1 | Visa payWave | MasterCard Contactless | UPI qUICS | Amex ExpressPay | Discover D-PAS | JCB J/Speedy | Interac Flash | MasterCard TQM | UL | FCC | IC | CE | RoHs
